BYD Super DM Hybrid Technology

BYD Super DM (Dual Mode) Technology, represents a game-changing evolution in intelligent plug-in hybrid (PHEV) technology. Exclusively developed by BYD, it brings a multitude of benefits including energy efficiency, low fuel consumption, drive performance and comfort.

How is BYD Super DM different?

BYD Super DM Technology differs from other PHEV technologies. At the heart of BYD Super DM Technology is an electric-based hybrid system. This hybrid architecture uses a high-power motor drive and large-capacity power battery as its primary power source, only using the engine for assistance. This innovative system focuses on efficiency, effortlessly adapting to different driving scenarios.

What are the benefits?



  • With a fully charged battery, the vehicle becomes pure electric.
  • When SOC is low, it transforms into an ultra-low fuel consumption hybrid vehicle.
  • Prioritises electric power with minimal reliance on fuel.
  • Kinder to the environment.
  • Offers greater energy efficiencies and lower fuel consumption.
  • Creates a quiet and comfortable ride.
  • Supplies high-power performance and responsiveness.

.

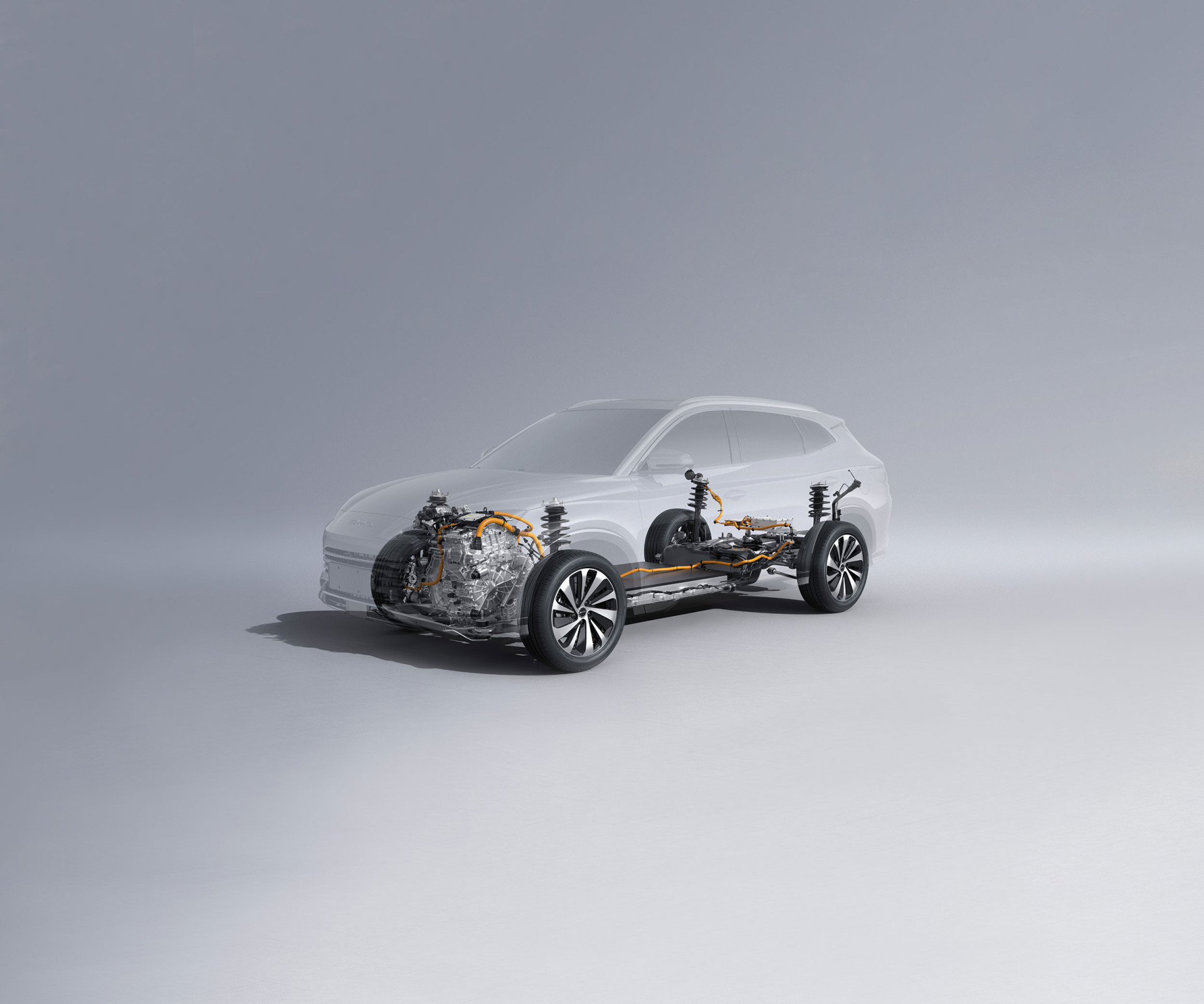

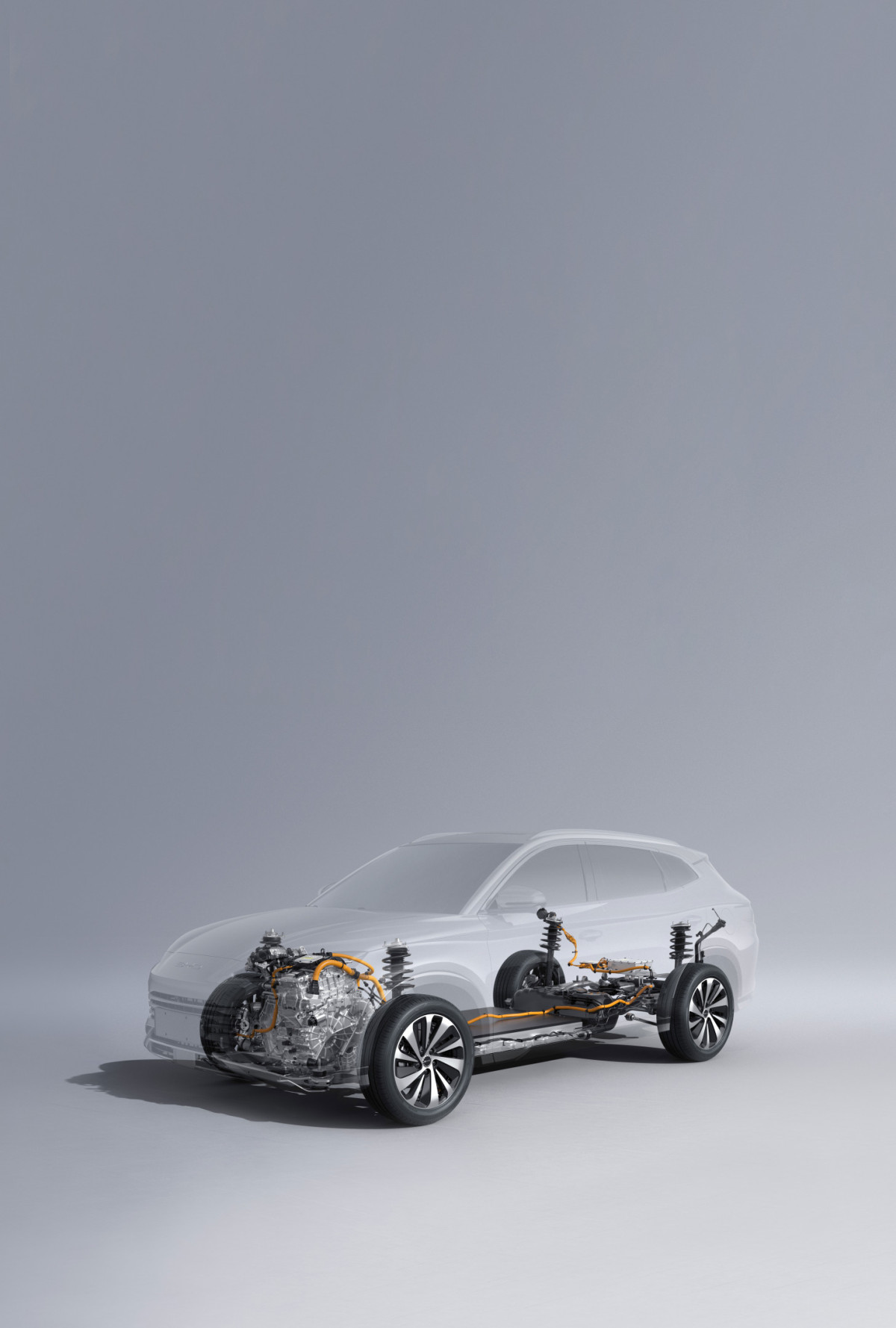

The three core components of Super DM Technology

BYD Super DM technology comprises 3 core components:

Electric Hybrid System (EHS)

The Electric Hybrid System (EHS) is a highly integrated powertrain that incorporates high-speed dual motors, dual controllers and advanced oil-cooling technology to increase motor power density and efficiency.

PEAK POWER:
145 kW / 150 kW

PEAK TORQUE:
300Nm

High-Speed Dual Motors:
EHS utilises impressive high-speed dual motors, with a maximum speed of up to 15,000 rpm. With two separate functions, the P1 motor generates the power and the P3 motor drives the wheels producing excellent performance in varying vehicle conditions.

Hairpin Motor
EHS uses innovative hairpin technology which significantly improves heat dissipation performance. Peak efficiency can be as much as 97%, remaining stable above 90% for most of the time.

Oil Cooling Technology
EHS benefits from oil cooling technology that directly cools the heat source, enhancing dissipation capabilities, and increasing motor power density to a maximum of 5.5 kW/kg.

Highly Integrated Dual-Motor Controller
IGBT elevates the overall electronic control efficiency up to 98.9%.

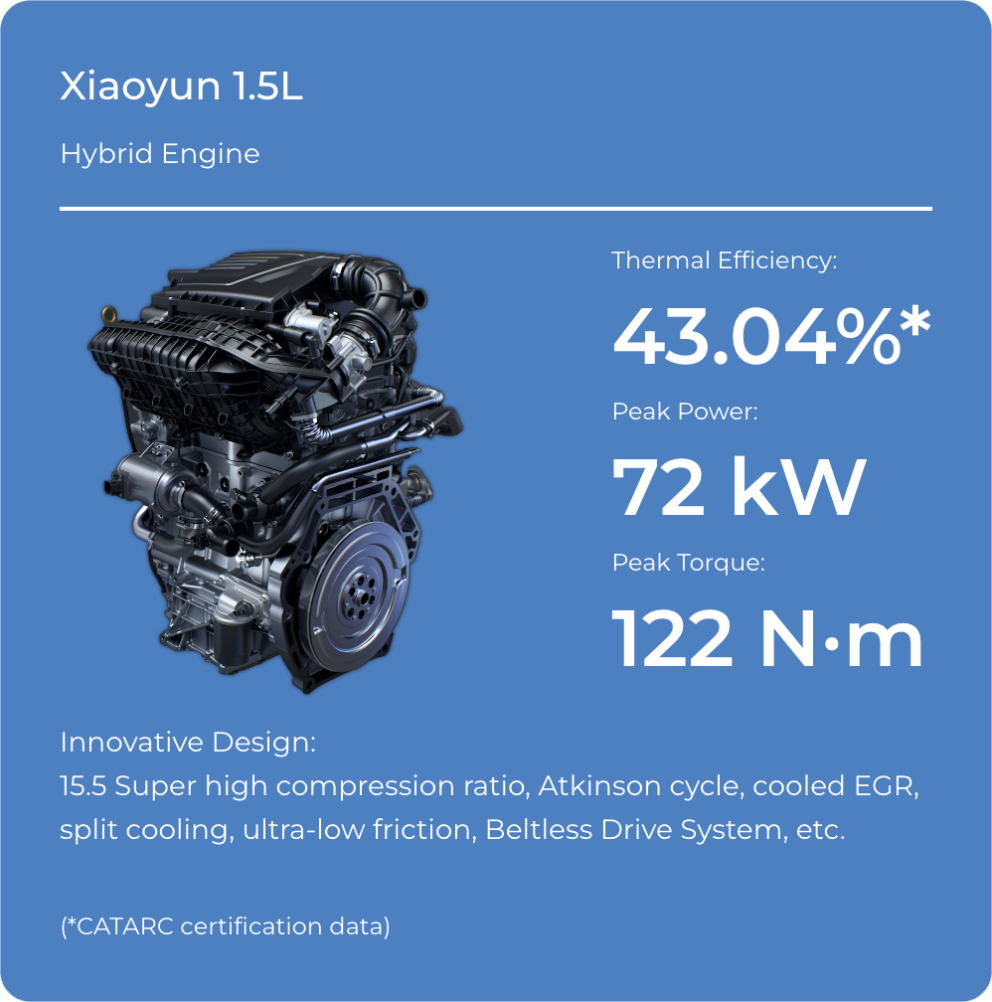

Xiaoyun 1.5L/1.5T Hybrid engine

An innovative engine design tailored for Super DM Technology, the Xioayun engine boasts world-leading thermal efficiency and a streamlined compact structure, enhancing power output with impressive peak power and torque.
Graphic showing the individual blades of the BYD Blade Battery

A large capacity Blade Battery

BYD Super DM Technology uses a tailor-made version of the highly acclaimed Blade Battery. These bespoke Blade Batteries for the hybrid platform have power capacities ranging from 18.3 kWh, achieving a pure-electric range from 43 miles. It offers multiple benefits such as the following.

Enhanced safety
The Blade Battery has safely passed the stringent Nail Penetration Test without emitting fire or smoke.

Optimised strength
Arranged in an array in one pack, each cell serves as a structural beam to help withstand force. The aluminium honeycomb-like structure, with high-strength panels on the upper and lower sides of the pack, enhances vertical rigidity.

Longer range
Compared with traditional battery packs, space utilisation is increased by 50% with the Blade Battery. This produces enhanced energy density for a longer range.

Longer lifecycle
The Blade Battery has a long battery life of over 5000 charge and discharge cycles.

Additional Technology

Three Power Supply Modes

Powered by the electric motor in 90% of driving conditions.

A Superb All-Round Experience

BYD Super DM Technology revolutionizes eco-friendly journeys. Combine energy efficiencies and fuel economies, with quick and responsive acceleration, as well as quiet and smooth ride comfort.

Economical: Energy Efficient, Low Fuel Consumption

BYD Super DM Technology has been developed to offer remarkable levels of energy efficiency, and lower fuel consumption, providing a practical low-carbon option for eco-conscious consumers. The specialist Xiaoyun 1.5L hybrid engine produces an industry-leading thermal efficiency of 43.04%*.
​​​​​​​
With a high-efficiency zone that increases to 80%, Super DM Technology has an impressive fuel consumption as low as 6L per 62 miles. A potent electric motor, with an exceptional 97% efficiency ensures an economical performance, producing a pure-electric driving range from 43 miles, while the combined technology offers a reassuring long range in excess of 621 miles in diverse conditions.
(*CATARC certification data)

Fast: Exhilarating, Responsive and Dynamic

BYD Super DM Technology combines power and efficiency for every journey. With a system total power of up to 238kW, expect a dynamic driving experience with high-power performance; fast acceleration and agile responsiveness.
​​​​​​​
Acceleration from 0-100 km/hr is comparable to that of 2.0T engine. The electric motor boasts an impressive 10ms-level response time, adding a remarkable level of precision to the driving dynamics.

Quiet: Bringing Serenity to Journeys

The electric-centric architecture integral to BYD Super DM Technology makes journeys quiet and serene, producing a haven of tranquillity.
​​​​​​​
Noise levels are minimised as the vehicle quietly glides along, whether in the city or on the highway, epitomising the perfect blend of power, efficiency and NVH excellence.

Smooth: Exceptional Ride Comfort

BYD Super DM Technology delivers an exceptionally smooth ride, rather like a pure EV driving experience. The Electric Hybrid System embodies simplicity with seamless gear shifts for effortless driving and comfortable journeys.
